Setup Persistent Volume

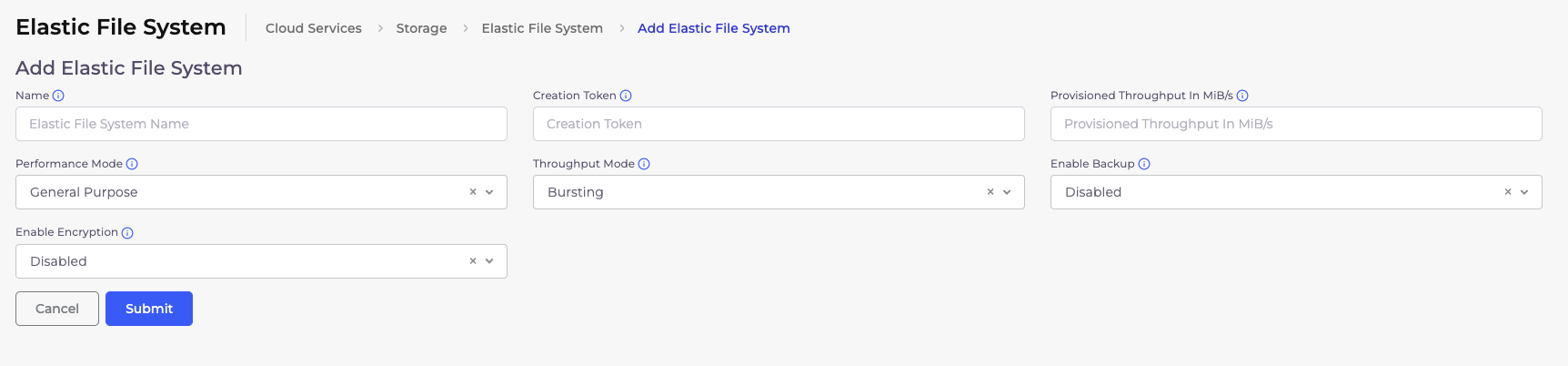

1. Create an EFS using Duplocloud portal in your tenant

   1. Cloud Service --> Storage --> EFS --> Click "+ Add" button

      1. Name - EFS name

      2. Performance Mode - General Purpose

      3. Throughput Mode - Bursting

      4. Enable Backup - Disabled

      5. Enable Encryption - Enable



2. Now create a storage class

   1. Kubernetes --> Storage --> Storage class --> Click "+ Add" button

   2. Name - Storage class name

   3. Provisioner - efs.csi.aws.com

   4. Reclaim Policy - Delete

   5. Volume Binding Mode - Immediate

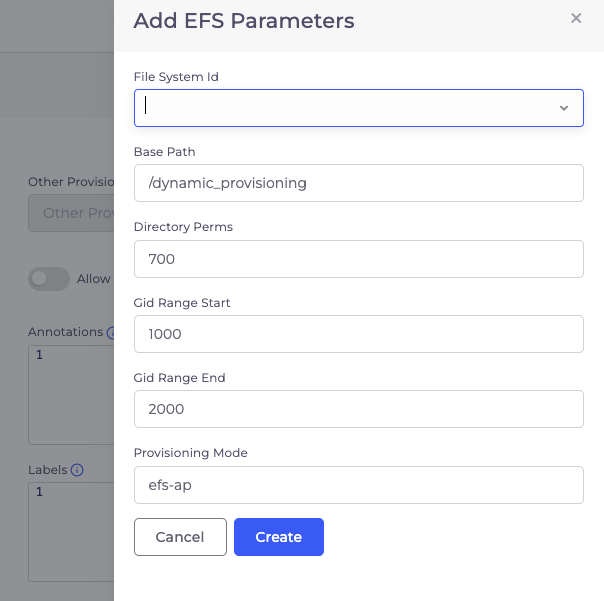

   6. Parameters --> Click "Set EFS parameters" --> Choose the EFS volume created in step 1

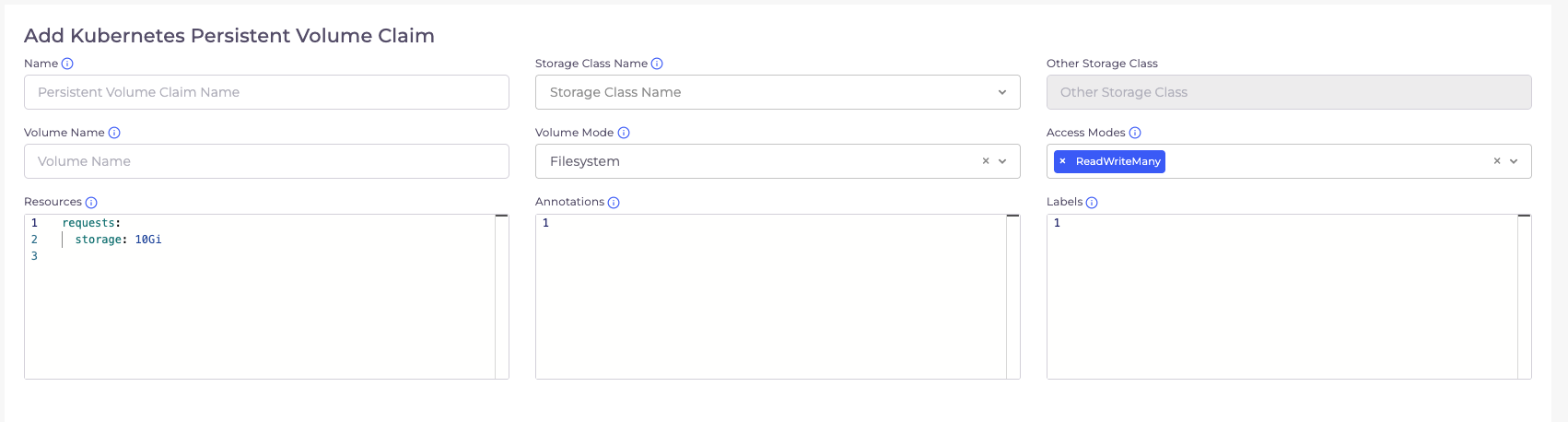

3. Create a new Persistent Volume Claim (PVC)

   1. Name - PVC name

   2. Storage Class Name - Choose the Storage class created in step 2

   3. Volume Name - Same as Name

   4. Volume Mode- Filesystem

   5. Access Mode - ReadWriteMany

   6. Resources - Update the storage value as per your need . Default is 10Gi

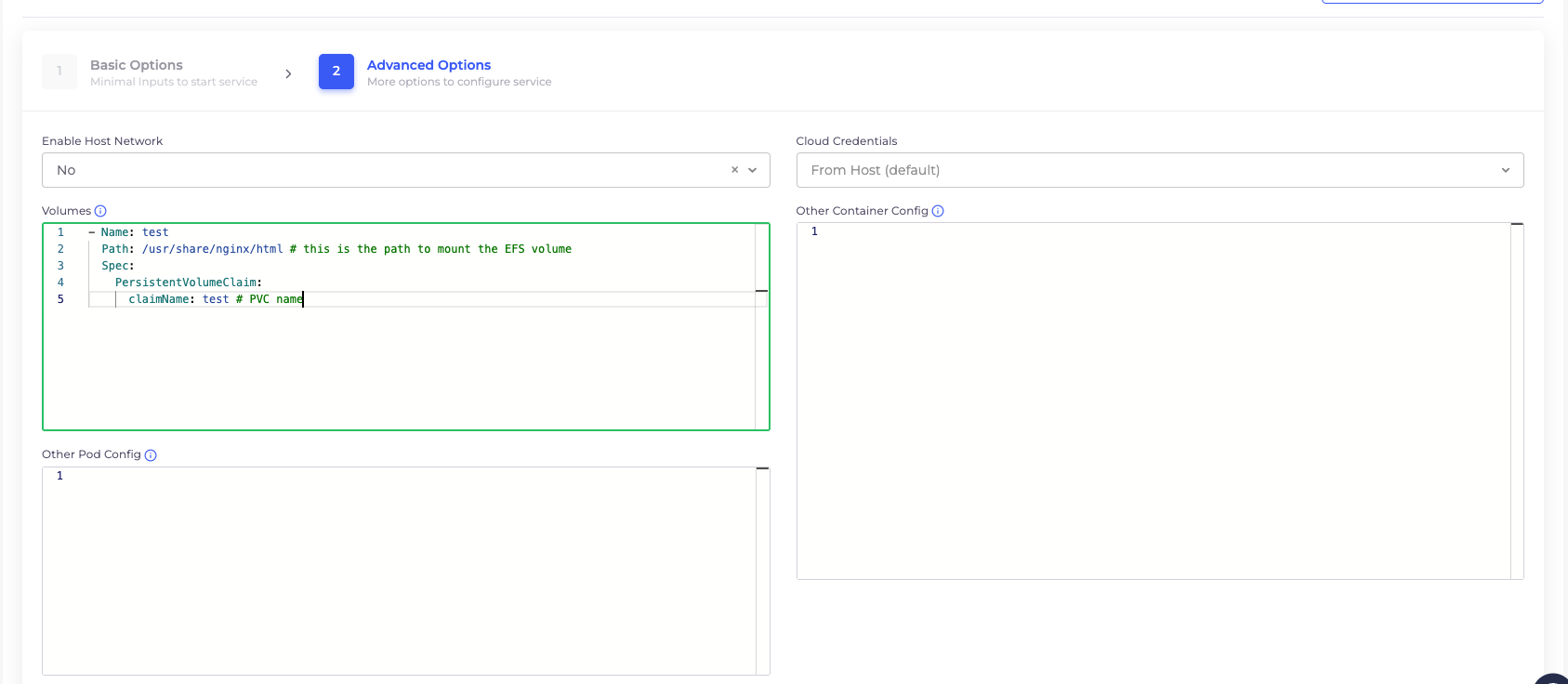

4. Update your service configuration to include the new PVC.

   - Name: test
     Path: /usr/share/nginx/html # this is the path to mount the EFS volume
     Spec:
       PersistentVolumeClaim:
         claimName: test # PVC name



5. Save the changes.

Usage

Once configured, the directory will persist across container restarts and redeployments. This ensures your data stored within the path mentioned in the volume remain intact.
